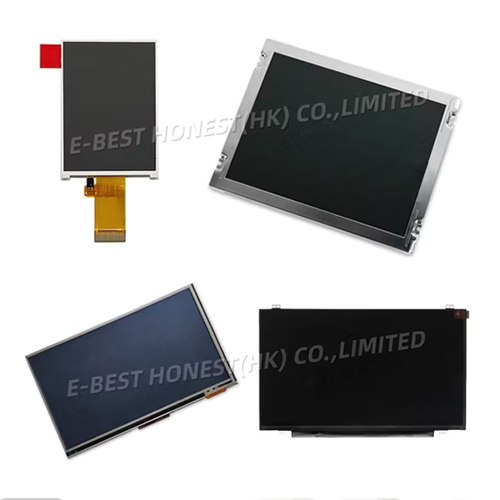

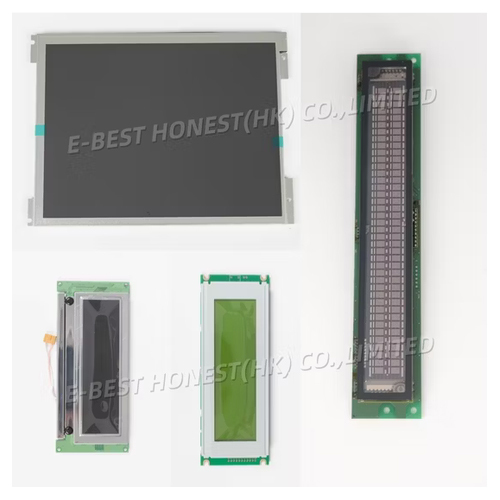

LCD Display

• Application
• Other, Laptop, Industrial Display, Medical Equipment, Replacement Screen

• Aspect Ratio
• 16:9

• Brightness
• 400 cd/m2 (typical)

• Contrast Ratio
• 1200:1

• Dimension (L*W*H)
• 356.46 x 208.86 x 3.2 mm (approx)

• Flat
• Yes

• Interface
• Other, eDP (4 Lanes), 40 pins

• Max Resolution
• 3840 x 2160 (UHD 4K)

• Panel Life
• 15,000 hours (typical)

• Panel Type
• Other, a-Si TFT-LCD

• Pixel Pitch
• 0.0896 x 0.0896 mm

• Place of Origin
• China

• Power Consumption
• 5.0W (typical)

• Response Time
• 30 ms (typical)

• Screen Size
• Other, 15.6 Inch

• Type
• Other, TFT LCD Panel

• Viewing Angle
• 89/89/89/89 (L/R/U/D)

• Weight
• 420g (approx)

• Widescreen
• YES

• Working Temperature
• 0C to 50C

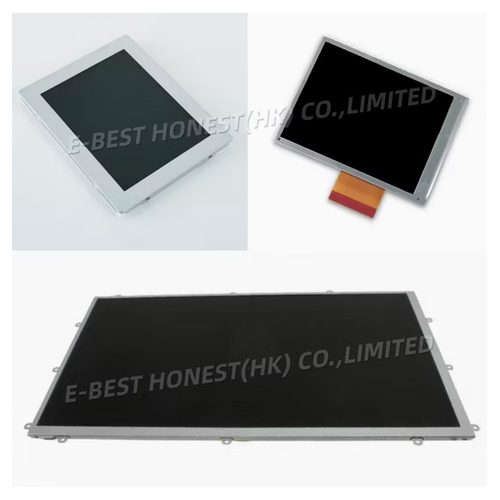

• Application
• Other, Industrial Machine Display

• Aspect Ratio
• 16:10

• Brightness
• 400 cd/m2

• Contrast Ratio
• 800:1

• Dimension (L*W*H)
• 229.46 x 149.1 x 3.2 mm

• Flat
• Yes

• Interface
• Other, LVDS (20 pins)

• Max Resolution
• 1280 800 pixels

• Panel Life
• 20,000 hours

• Panel Type
• Other, a-Si TFT-LCD

• Pixel Pitch
• 0.1695 0.1695 mm

• Place of Origin
• China

• Power Consumption
• 3.3V (typical), 4W

• Response Time
• 25 ms

• Screen Size
• Other, 10.1 Inch

• Type
• Other, LCD Panel

• Viewing Angle
• 170(H)/170(V)

• Weight
• Approx. 235g

• Widescreen
• YES

• Working Temperature
• -20C~70C

• Application
• Other, Industrial Control Equipment, Medical Devices, GPS, Tablet PCs, Automotive Displays

• Aspect Ratio
• 16:9

• Brightness
• 400 cd/m2

• Contrast Ratio
• 500:1

• Dimension (L*W*H)
• 165 mm x 100 mm x 6 mm

• Flat
• Yes

• Interface
• Other, RGB 24Bit

• Max Resolution
• 800 x 480 pixels (WVGA)

• Panel Life
• 20,000 hours (typical)

• Panel Type
• Other, TFT-LCD

• Pixel Pitch
• 0.192 mm x 0.192 mm

• Place of Origin
• China

• Power Consumption
• 2.5W (typical)

• Response Time
• 16 ms

• Screen Size
• Other, 7 Inch

• Type
• Other, LCD Panel

• Viewing Angle
• 140 (horizontal), 120 (vertical)

• Weight
• approx. 150g

• Widescreen
• YES

• Working Temperature
• -20C to +70C

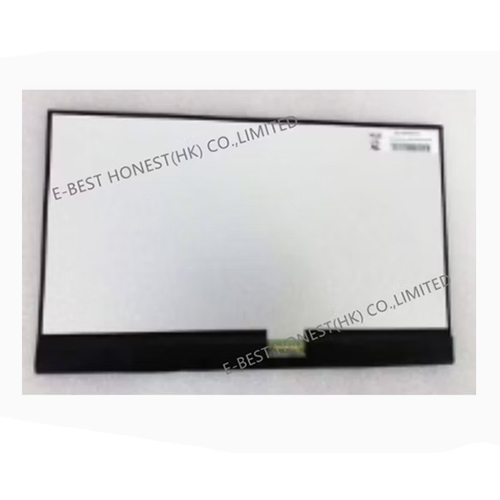

• Application
• Other, Laptop Display Replacement

• Aspect Ratio
• 16:9

• Brightness
• 250 cd/m2 (typical)

• Contrast Ratio
• 800:1

• Dimension (L*W*H)
• 267.2 x 168.5 x 3.2 mm

• Flat
• Yes

• Interface
• Other, eDP (30 Pin)

• Max Resolution
• 1920x1080 (Full HD)

• Panel Life
• 20,000 Hours

• Panel Type
• Other, IPS (In-Plane Switching)

• Pixel Pitch
• 0.13425 mm (H) 0.13425 mm (V)

• Place of Origin
• China

• Power Consumption
• 2.5W (typical)

• Response Time
• 25 ms

• Screen Size
• Other, 11.6 Inch

• Type
• Other, EV116FHM-N10 LCD Panel

• Viewing Angle
• 85/85/85/85 (L/R/U/D)

• Weight
• Approx. 170g

• Widescreen
• YES

• Working Temperature
• 0C~50C

• Application
• Other, Industrial Equipment, Medical Devices, Automation Displays

• Aspect Ratio
• 4:3

• Brightness
• 450 cd/m2

• Contrast Ratio
• 700:1

• Dimension (L*W*H)
• 280.0 210.0 11.0 mm

• Flat
• Yes

• Interface
• Other, LVDS (1 ch, 6/8-bit)

• Max Resolution
• 800600 (SVGA)

• Panel Life
• 50,000 hours

• Panel Type
• Other, a-Si TFT-LCD, LCM

• Pixel Pitch
• 0.3075 0.3075 mm

• Place of Origin
• Japan

• Power Consumption
• 8.0W (Typical)

• Response Time
• 16 ms

• Screen Size
• Other, 12.1 inch

• Type
• Other, TFT LCD Panel

• Viewing Angle
• 160(H)/140(V)

• Weight
• 680g

• Widescreen
• NO

• Working Temperature
• -20C ~ 70C

• Application
• Other, Industrial Equipment/Automotive Display/Tablet Display/Medical Device

• Aspect Ratio
• 16:9

• Brightness
• 400 cd/m2 (typical)

• Contrast Ratio
• 500:1

• Dimension (L*W*H)
• 235 mm 143 mm 6 mm (approx)

• Flat
• Yes

• Interface
• Other, LVDS 40 Pin

• Max Resolution
• 1024x600 (WSVGA)

• Panel Life
• 20,000 hours (min)

• Panel Type
• Other, a-Si TFT-LCD

• Pixel Pitch
• 0.2175 0.2088 mm

• Place of Origin
• China

• Power Consumption
• 3.5W (typical)

• Response Time
• 10 ms

• Screen Size
• Other, 10.1 Inch

• Type
• Other, LCD Panel

• Viewing Angle
• 140 (H) / 120 (V)

• Weight
• 250g (approx)

• Widescreen
• YES

• Working Temperature
• -20C to +70C

• Application
• Other, Industrial, Medical Equipment, Automotive, Portable Devices, Embedded Systems

• Aspect Ratio
• 16:9

• Brightness
• 250 cd/m2

• Contrast Ratio
• 500:1

• Dimension (L*W*H)
• 165.0 x 100.0 x 5.7 mm (typical)

• Flat
• Yes

• Interface
• Other, LVDS / RGB 24-bit

• Max Resolution
• 800x480 pixels

• Panel Life
• 20,000 hours (typical)

• Panel Type
• Other, TFT LCD

• Pixel Pitch
• 0.1926 x 0.1790 mm

• Place of Origin
• China

• Power Consumption
• 2.6 W (typical)

• Response Time
• 20 ms

• Screen Size
• Other, 7 Inch

• Type
• Other, LCD Panel

• Viewing Angle
• 140 (H) / 120 (V)

• Weight
• ~150g

• Widescreen
• YES

• Working Temperature
• -20C to +70C

• Application
• Other, Laptop Display Replacement

• Aspect Ratio
• 16:9

• Brightness
• 250 cd/m2

• Contrast Ratio
• 800:1

• Dimension (L*W*H)
• 359.5mm x 223.5mm x 3.2mm

• Flat
• Yes

• Interface
• Other, eDP 30-Pin

• Max Resolution
• 1920x1080 (Full HD)

• Panel Life
• 15,000 Hours (Typical)

• Panel Type
• IPS

• Pixel Pitch
• 0.17925 mm x 0.17925 mm

• Place of Origin
• China

• Power Consumption
• 3.5W (Typical)

• Response Time
• 25 ms

• Screen Size
• Other, 15.6 Inch

• Type
• Other, LCD Panel

• Viewing Angle
• 170 (H) / 170 (V)

• Weight
• ~420g

• Widescreen
• YES

• Working Temperature
• 0C to 50C

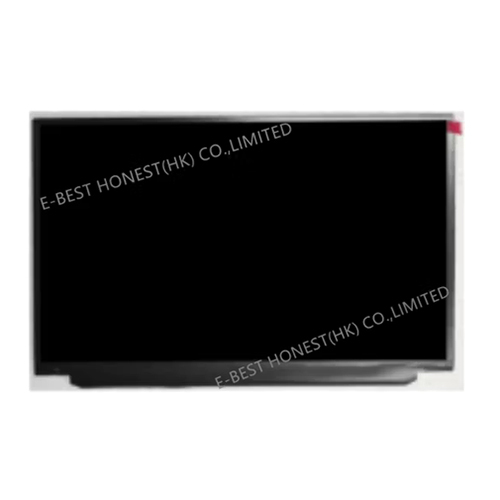

• Application
• Other, Laptop Display, Industrial Equipment, Medical Equipment, Monitors

• Aspect Ratio
• 16:9

• Brightness
• 300 cd/m2 (typical)

• Contrast Ratio
• 800:1 (typical)

• Dimension (L*W*H)
• 290.5 179.4 2.75 mm

• Flat
• Yes

• Interface
• Other, eDP, 30Pins

• Max Resolution
• 1920x1080 (Full HD)

• Panel Life
• 20,000 hours (typical)

• Panel Type
• Other, a-Si TFT-LCD, IPS

• Pixel Pitch
• 0.1431 0.1431 mm

• Place of Origin
• China

• Power Consumption
• 5.0W (Max.)

• Response Time
• 14 ms (typical)

• Screen Size
• Other, 12.5 Inch

• Type
• Other, LCD Panel

• Viewing Angle
• 89/89/89/89 (Typ.) (CR10)

• Weight
• Approx. 220g

• Widescreen
• YES

• Working Temperature
• 0C~50C

• Application
• Other, Industrial and Commercial Display Equipment

• Aspect Ratio
• 16:10

• Brightness
• 250 cd/m2 (typical)

• Contrast Ratio
• 800:1

• Dimension (L*W*H)
• 267.6 mm 168.2 mm 5.7 mm (approximate)

• Flat
• Yes

• Interface
• Other, LVDS (Low Voltage Differential Signaling)

• Max Resolution
• 1366 768 pixels (WXGA)

• Panel Life
• 30,000 hours (typical)

• Panel Type
• Other, a-Si TFT-LCD

• Pixel Pitch
• 0.199 mm 0.199 mm

• Place of Origin
• Japan

• Power Consumption
• 5.5 W (typical)

• Response Time
• 25 ms

• Screen Size
• Other, 11.1 inch

• Type
• Other, TFT LCD Panel

• Viewing Angle
• 80/80/80/80 (L/R/U/D)

• Weight
• 340g (approximate)

• Widescreen
• YES

• Working Temperature
• -20C to 70C

• Application
• Other, Industrial display, Medical equipment, Automotive display, Portable device

• Aspect Ratio
• 16:10

• Brightness
• 350 cd/m2

• Contrast Ratio
• 800:1

• Dimension (L*W*H)
• 277.7 mm 182.5 mm 7.0 mm (typical)

• Flat
• Yes

• Interface
• Other, LVDS (30 pins)

• Max Resolution
• 1280 x 800 (WXGA)

• Panel Life
• 50,000 hours

• Panel Type
• Other, a-Si TFT-LCD

• Pixel Pitch
• 0.20475 0.20475 mm

• Place of Origin
• China

• Power Consumption
• 3.6W (typical)

• Response Time
• 16 ms

• Screen Size
• Other, 12.1 Inch

• Type
• Other, GV121WXM-N80 LCD Panel

• Viewing Angle
• 170 (H) / 170 (V)

• Weight
• Approx. 450g

• Widescreen
• YES

• Working Temperature
• -20C ~ 70C

• Application
• Laptop

• Aspect Ratio
• 16:9

• Brightness
• 300 cd/m2

• Contrast Ratio
• 700:1

• Dimension (L*W*H)
• 315.8 x 197.4 x 3.2 mm

• Flat
• Yes

• Interface
• Other, eDP (2 Lanes), 30 Pins

• Max Resolution
• 1920 x 1080

• Panel Life
• 20,000 hours (typ.)

• Panel Type
• IPS

• Pixel Pitch
• 0.1611 x 0.1611 mm

• Place of Origin
• China

• Power Consumption
• 4W (Max)

• Response Time
• 25 ms

• Screen Size
• Other, 14 Inch

• Type
• Other, LCD Panel

• Viewing Angle
• 85/85/85/85 (Left/Right/Up/Down)

• Weight
• ~320g

• Widescreen
• YES

• Working Temperature
• 0C-50C

• Application
• Other, Laptops, Industrial Devices, Monitors

• Aspect Ratio
• 16:9

• Brightness
• 300 cd/m2 (typical)

• Contrast Ratio
• 800:1 (Typical)

• Dimension (L*W*H)
• 363.8 mm 215.5 mm 3.2 mm

• Flat
• Yes

• Interface
• Other, eDP (2 Lanes), 30 pins

• Max Resolution
• 1920x1080 pixels (FHD)

• Panel Life
• 20,000 hrs (min.)

• Panel Type
• Other, a-Si TFT-LCD, IPS

• Pixel Pitch
• 0.17925 0.17925 mm

• Place of Origin
• China

• Power Consumption
• 6.6W (typical)

• Response Time
• 30ms (Typical)

• Screen Size
• Other, 16.1 Inch

• Type
• Other, LCD Panel

• Viewing Angle
• 89/89/89/89 (Typ.)(CR10)

• Weight
• 410g (approx)

• Widescreen
• YES

• Working Temperature
• 0 ~ 50C

• Application
• Other, Laptop Display Replacement

• Aspect Ratio
• 16:9

• Brightness
• 300 cd/m2

• Contrast Ratio
• 800:1

• Dimension (L*W*H)
• Approximately 359.5 mm x 223.8 mm x 3.2 mm

• Flat
• Yes

• Interface
• Other, eDP (2 Lanes)

• Max Resolution
• 1920x1080 (Full HD)

• Panel Life
• 20,000-30,000 hours

• Panel Type
• Other, a-Si TFT-LCD

• Pixel Pitch
• 0.17925 mm 0.17925 mm

• Place of Origin
• China

• Power Consumption
• Low Power Consumption

• Response Time
• 25 ms

• Screen Size
• Other, 15.6 Inch

• Type
• Other, LCD Panel

• Viewing Angle
• 89/89/89/89 (L/R/U/D)

• Weight
• ~400g

• Widescreen
• YES

• Working Temperature
• 0C to 50C

• Application
• Other, Laptop Display Replacement

• Aspect Ratio
• 16:9

• Brightness
• 220 cd/m2

• Contrast Ratio
• 500:1

• Dimension (L*W*H)
• Approx. 278 x 156 x 3.2 mm

• Flat
• Yes

• Interface
• Other, eDP (30 pins)

• Max Resolution
• 1366 x 768

• Panel Life
• 20,000 hours (typical)

• Panel Type
• Other, a-Si TFT-LCD

• Pixel Pitch
• 0.1875 x 0.1875 mm

• Place of Origin
• China

• Power Consumption
• 2.5W (typical)

• Response Time
• 8 ms

• Screen Size
• Other, 11.6 Inch

• Type
• Other, LCD Panel

• Viewing Angle
• 45/45/20/40 (L/R/U/D)

• Weight
• Approx. 210 g

• Widescreen
• YES

• Working Temperature
• 0C ~ 50C
